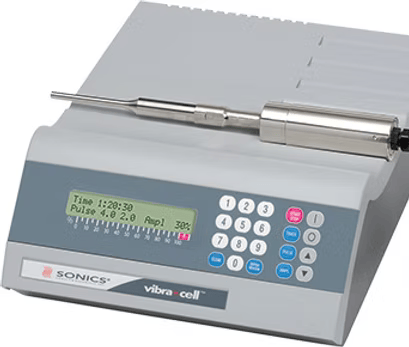

VCX 130 – Compact Ultrasonic Processor for Small Volumes (0.2–150 mL)

The VCX 130 is a popular choice among laboratories that work with small liquid volumes. It delivers 130 watts of power and is fully programmable, offering the same advanced features as larger systems – but in a compact format.

The standard version includes a 6 mm diameter probe, ideal for volumes between 10–50 mL. A variety of probes and accessories are available for specific applications.

Key Features:

• Programmable operation
• Pulse mode
• 10-hour timer
• Adjustable power output
• Real-time display of power (W) and energy

Technical Specifications:

• Max output: 130 W
• Frequency: 20 kHz
• Dimensions: 115 x 250 x 320 mm
• Fixed converter cable (1.5 m)
• Converter: CV18 (Ø 32 mm, length 146 mm)
• Standard probe: Ø 6 mm, length 137 mm (Ti6Al4V)

Optional Accessories:

• Stand with clamp (Part No. 830-00460)
• Sound enclosure (Part No. 830-00451)

This equipment is CE-marked and complies with current safety and environmental standards. Feel free to contact us for advice or more information.
